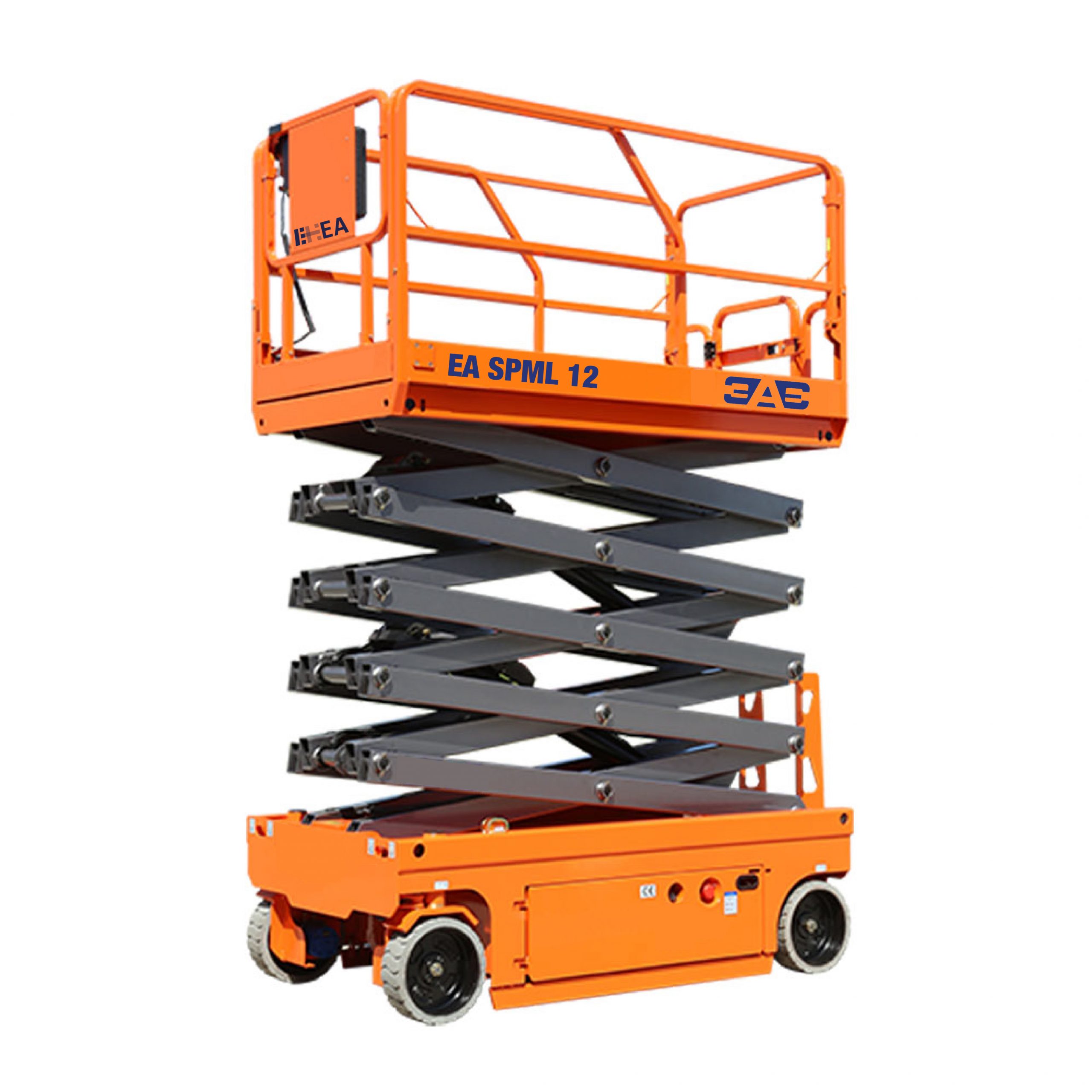

EA SPML 12 Akülü Makaslı Platform

Safety Measures Provided as Standard

Preventing the sudden fall of the platform in case of hydraulic hose explosion due to the hose explosion valve, stopping the platform
Overload prevention with safety valve
Manual basket lowering (hydraulically lowering system in case of a power outage or malfunction)
Safety in the control circuit with 24 V DC control circuit
Double emergency stop button (in the basket and on the body)
Take-off and landing warning system with audible and visual flashers
Sepet etrafında alet düşmesini engellemek için tekmelikler
Şasi altında otomatik açılan denge klapeleri
16m ve 18m modeller için yana açılır 4 adet denge ayağı (yükseklik ayarı sayesinde dengesiz zeminlerde güvenli sabitleme)
Sepet içinde denge terazisi. (360 su terazisi)

İsteğe bağlı elektronik kontrol ile yana açılan denge ayakları (14m ve 16m modeller için)

Durable steel construction designed with engineering calculations

Yükseklik : 12m
Charge Rectifier Supply V AC CE Certificate
Ability to track working time with time counter
CE Sertificate
Production in accordance with TS-EN 280 standard
Joystick controlled electronic circuit control
Electronic proportional control via joystick
Dual control system
Safe and ergonomic basket handrails
Non-marking rubber padding wheels
Highly maneuverable rotating system
Forklift fork sleeves for forklift transport
Additional 1m working flexibility with an extendable platform
Teardrop patterned aluminum basket base (non-slip)
Tool box in the basket
Front-wheel drive system with hydraulic motor (on the front two wheels)
Hydraulic release brake system with spring compression (on the rear two wheels)
Manual brake release system
Air cooled 24V DC Motor
Ability to control from any point in the basket with Flexible Joystick control connection
Ramp safety with training sensor
Dual battery level indicator (on joystick and body control panel)
